What communication options are available in HydroSense sump level sensor?

The system supports multiple tank monitoring communication interfaces including RS-485 Modbus RTU, LoRa, Wi-Fi, and Bluetooth, with SCADA, PLC, and cloud compatibility for real-time data access.

Can hydrostatic level sensors work in extreme temperature and harsh environments?

The hydrostatic sump level sensor is designed for harsh industrial conditions, operating reliably from -20°C to +85°C, and features corrosion-resistant SS316L construction for long-term durability.

Is the sump tank level sensor safe for hazardous industrial zones?

HydroSense is an ATEX certified sump tank level monitoring sensor, designed with explosion-proof and corrosion-resistant features for safe operation in high-risk industrial environments.

HydroSense-Hydrostatic Level Sensor for Sump Tank Level Monitoring

Name: HydroSense
Brand: My Tank
Availability: InStock

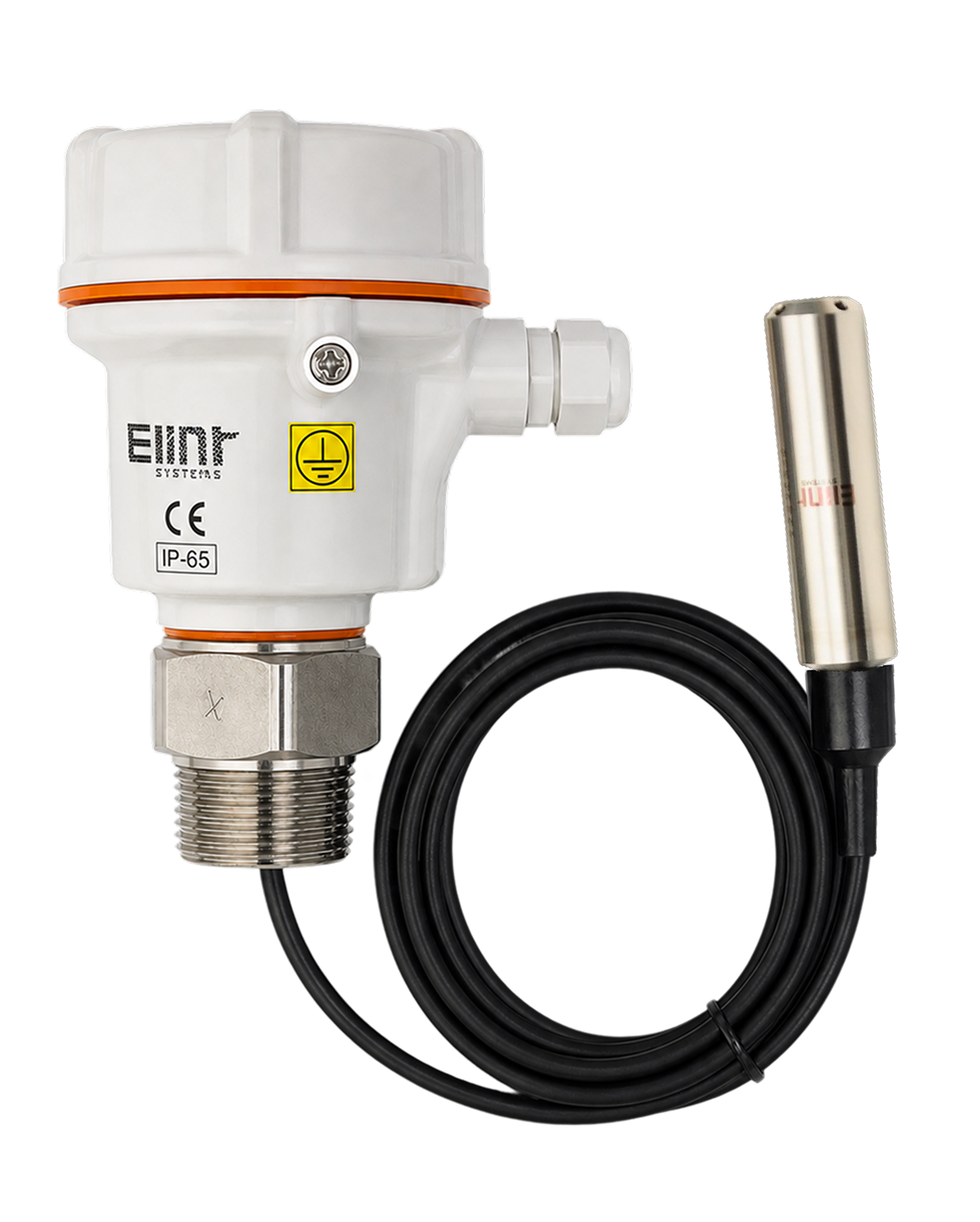

Hydrostatic sump tank level sensor for continuous water and liquid level monitoring

Real-Time Sump Tank Level Monitoring

1 mm High-Precision Resolution

±0.05% FS Industrial Accuracy

RS485 Modbus RTU Connectivity

LoRa, Wi-Fi & Bluetooth Support

SS304 / SS316L Corrosion-Resistant

ATEX Certified Explosion-Proof

SCADA, PLC & Cloud Integration

Reliable Sump Tank Measurement Technology

Resolution

1 mm

±0.05% FS accuracy

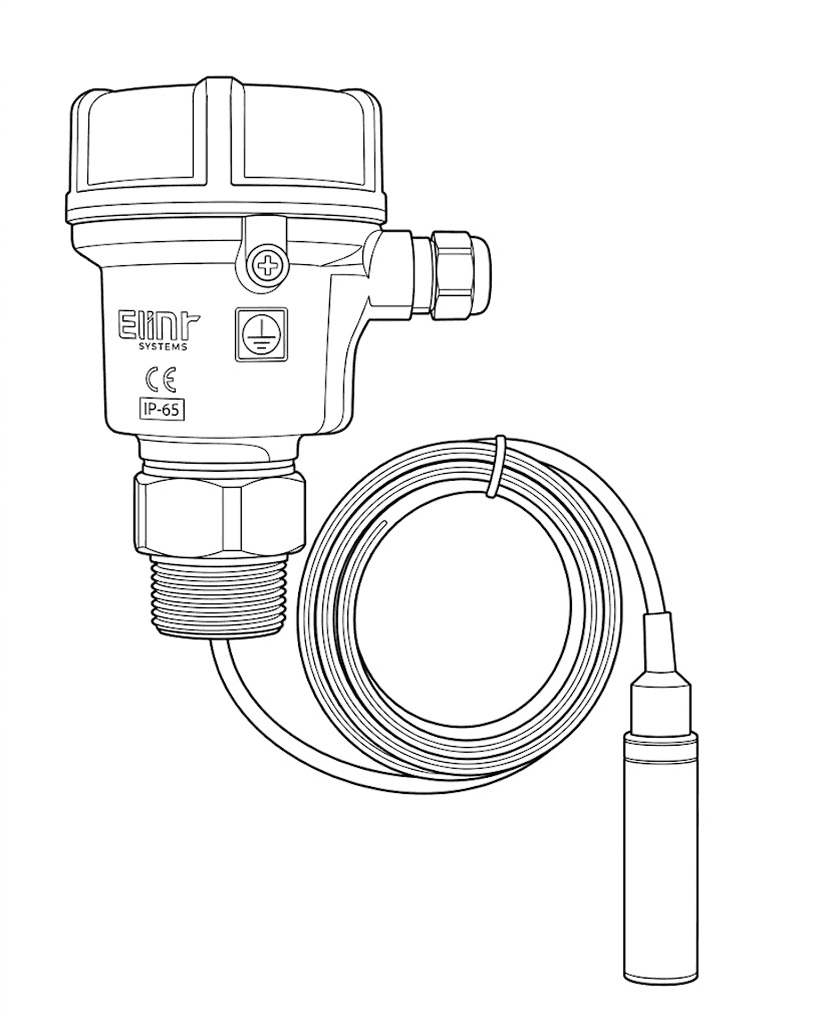

HydroSense

Hydrostatic Level Sensor

Sump Tank

Operating range

−20° to +85°C

Connectivity

LoRa • Wi-Fi • RS-485

SCADA / PLC / Cloud ready

Measurement range

10 – 10,000 mm

200% overload protection

Housing

SS316L

Welded seal • ATEX certified

Protection

IP66

Dust-tight • Waterproof

Tank Level Monitoring

Level in mm

Level in %

Continuous monitoring

Sump Tank Level Measurement
Communication Interface

Enables reliable tank monitoring with real-time data
transmission and control.Enables reliable tank monitoring
with real-time data transmission and control.

RS-485 Modbus RTU – Stable sump tank sensor integration

Wireless Connectivity – LoRa, Wi-Fi & Bluetooth support

SCADA / PLC / Cloud – Smart sump tank automation compatibility

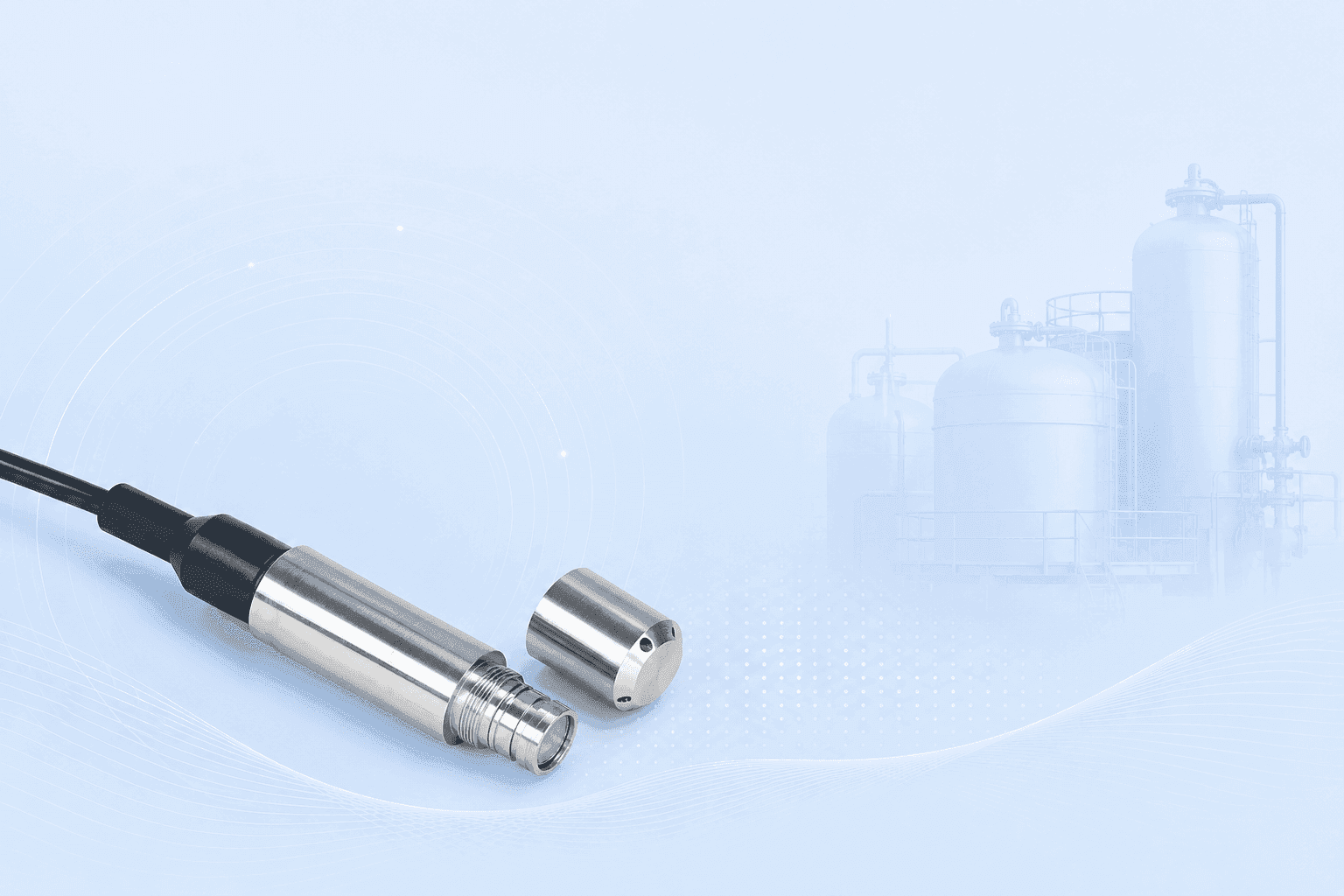

Industrial-Grade Stainless Steel Tank Level Sensor Design

Engineered for durability in corrosive and high-pressure environments.

Stainless Steel Housing (SS304 / SS316L)

SS316L Diaphragm

Welded Sealing Design

High-Precision Hydrostatic Level Sensor Accuracy & Resolution

Delivering ultra-accurate tank level monitoring with industry-leading measurement technology.

1 mm

Resolution

±0.05%

FS Accuracy

Built for Industrial Reliability

Engineered to withstand demanding industrial conditions with superior shock resistance and insulation.

Up to 50 g

Shock Resistance

> 100 MΩ

Insulation @ 50 VDC

High-Stability Fill Level Measurement

Engineered for reliable liquid level sensing with wide-range performance and long-term durability.

Wide Pressure Range
(10 – 10,000 mm)

High Accuracy
(±0.25% FS)

High Overload Protection
(Up to 200%)

Extreme Burst Resistance
(300%)

Wide Operating Temperature Range for Reliable Sump Level Monitoring

Ensures consistent sump tank level measurement across extreme environmental conditions from freezing cold to intense heat.

Operating Temperature: +85°C

Operating Temperature: −20°C

Industrial Safety Sump Tank
Level Monitoring

Ensures safe, reliable sump tank monitoring in hazardous and high-risk industrial environments.

Explosion-Proof Design

Corrosion-Resistant Build

ATEX Certified

FAQ

What is a hydrostatic level sensor used for in sump tanks?

A hydrostatic level sensor is used for accurate sump tank level monitoring by measuring liquid pressure to determine real-time fluid levels. It is ideal for industrial, municipal, and wastewater applications requiring continuous monitoring.

How does HydroSense ensure accurate sump tank level measurement?

HydroSense delivers precise sump tank level measurement using high-resolution sensing (1 mm) and ±0.05% FS accuracy, ensuring stable and reliable readings even in fluctuating conditions.

How do I measure the water level in a sump tank?

The most accurate way to measure the water level in a sump tank is with a hydrostatic level sensor. It continuously measures water level and provides real-time monitoring, alerts, and remote access through an IoT dashboard.

What is the best sensor for sump tank level monitoring?

A hydrostatic level sensor is one of the best solutions for sump tank level monitoring. It offers high accuracy, reliable performance, and continuous water level measurement, even in underground and enclosed tanks.

How can I monitor my borewell water level remotely?

Install an IoT-enabled hydrostatic level transmitter in the borewell to monitor water levels remotely. It sends real-time data to a cloud dashboard or mobile app via LoRaWAN, 4G LTE, or RS485 connectivity.

Is a hydrostatic level sensor suitable for sewage and wastewater monitoring?

Yes. Hydrostatic level sensors are ideal for sewage and wastewater monitoring because they provide accurate liquid level measurement in harsh environments and are designed for continuous industrial use.

Can a hydrostatic level sensor connect to SCADA?

Yes. Most hydrostatic level transmitters support RS485 Modbus, 4–20 mA, or other industrial outputs, making them easy to integrate with SCADA, PLCs, and IoT platforms.
